Mabef · Made in Italy · Since 1948
The wooden tripod your pochade box deserves
Oiled Italian beech, 70 to 116cm, an 18 by 18cm platform and a leather strap, at 1.3kg. Made for the Mabef M104 and M105, and fitted with a standard photographic thread so it takes far more than that.

A pochade box on the wrong support is a frustrating morning. Too small a head and the box overhangs and tips. Too flimsy a leg set and every brushstroke moves the painting. Meanwhile the whole point of a pochade box is that you walked somewhere good to use it, so whatever is holding it up has to have come along quietly in the first place.

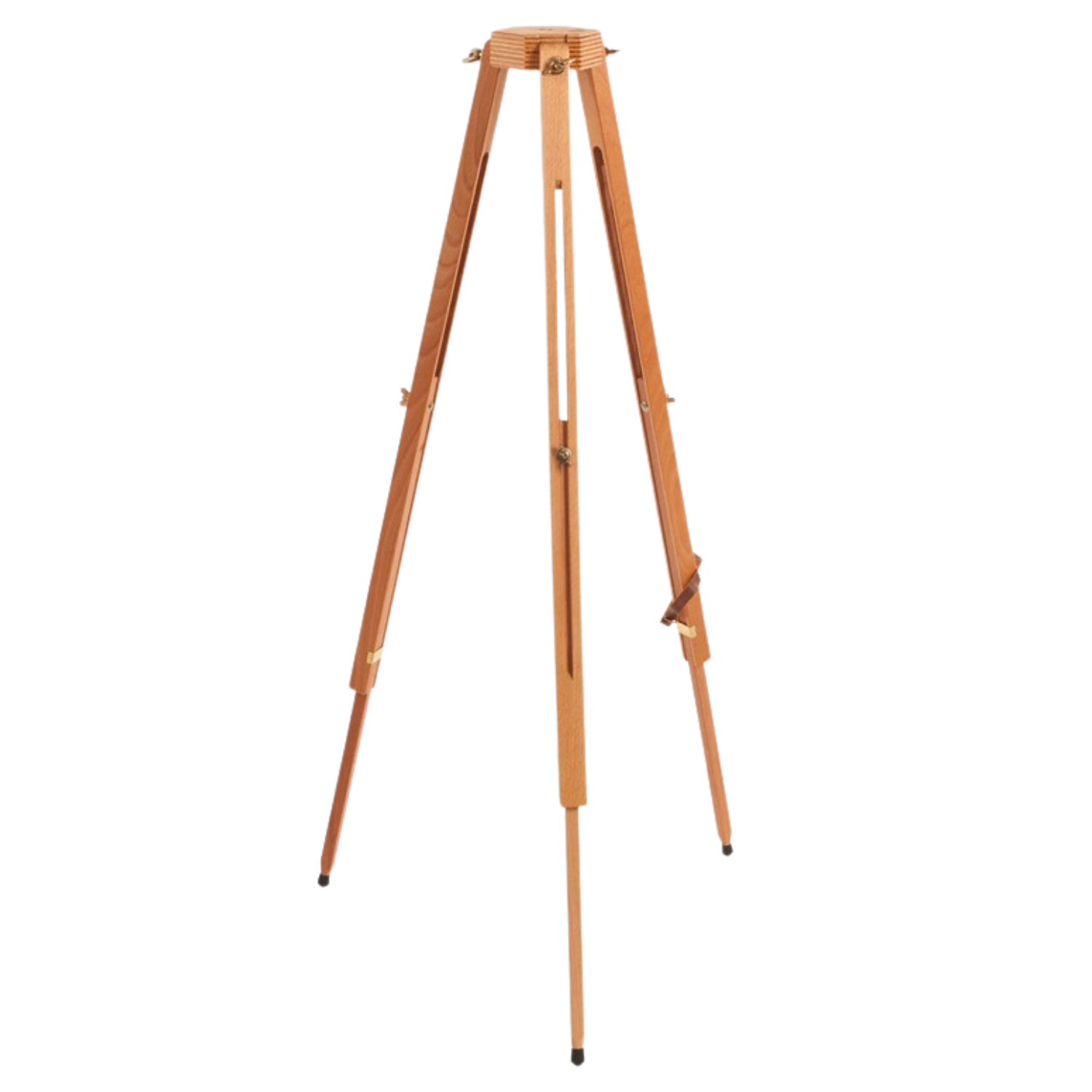

The Mabef MA30 is a proper wooden tripod built for exactly this job. An 18 by 18cm flat platform, so a pochade box sits on it fully supported rather than perched. Height from 70cm to 116cm, so you can work sitting or standing. All of it in oiled Italian beech, weighing 1.3kg and holding up to 8kg.

Mabef make it for their M104 and M105 pochade boxes. What they do not shout about is that those boxes mount on a standard photographic tripod thread, so this tripod is far less proprietary than it looks.

★ Art Shed Staff Tip
Set the height before you mount the box, not after. It is much easier to adjust three legs with nothing on top than to do it one handed while steadying a loaded pochade box with a wet palette in it. Stand where you will paint, set the platform to just below your natural working height, then mount.

Perfect for


Mabef M104 and M105 pochade boxesPlein air paintingOther pochade boxes with a standard threadTravel and hikingSketching tripsWorkshops

What makes it worth owning



Platform
18 by 18cm
A pochade box sits fully supported, not perched.

Height
70 to 116cm
Work seated or standing, your choice.

Weight
1.3kg, holds 8kg
Carries six times what it weighs.

Carry
Leather leg strap
Legs close and stay closed on the walk.

Wood, outdoors, on purpose



Aluminium tripods are lighter and cheaper and there is nothing wrong with one. Beech has two advantages that matter specifically for painting. It damps vibration instead of transmitting it, so a breeze or a heavy hand does not travel up into the painting. And it is comfortable to handle in real weather, where an aluminium leg is freezing at dawn and unpleasantly hot by two in the afternoon.

The oiled, stain resistant finish is the practical part. Paint gets on everything outdoors, and on oiled beech it wipes off rather than soaking in.

Specifications


Model Mabef M/A30 Tripod
Designed for Mabef M/105 and M/104 pochade boxes
Mount Standard photographic tripod thread
Top platform 18cm by 18cm
Height Adjustable from 70cm to 116cm
Maximum load 8kg
Weight 1.3kg
Material Oiled, stain resistant beech wood
Carry Leather strap on one leg holds the legs closed
Assembly One time assembly, three legs into the central joint, hardware supplied
Origin Made in Italy by Mabef
Warranty 24 month international warranty, lifetime free on online registration with Mabef

For full details of the Mabef warranty, including how to register your easel, see the Mabef warranty page.

Mabef, and why we carry so much of it



Mabef have been making easels in Italy since 1948 and have never once diversified into anything else. No brushes, no paint, no pencil cases. Just easels, for three quarters of a century, by a family who clearly think about hinges more than is strictly healthy. We find that faintly wonderful, and it shows in the joinery and in the warranty they are willing to put behind it.

Art Shed carries over forty Mabef lines, one of the deepest Mabef ranges in Australia: field easels, studio masts with cranks, lyre easels, sketch boxes, table easels, sculpture trestles, print racks, stools and the full run of beech palettes. Not a token three models and a special order form. If you are building a studio around Mabef, or matching an easel you already own, we almost certainly have the rest of the family in stock.

Questions about the Mabef MA30 Tripod



Does it only fit Mabef pochade boxes?

No, and this is the best thing about it. The Mabef M104 and M105 pochade boxes mount using a standard photographic tripod thread, the same quarter inch bush a camera uses. So the MA30 will take any pochade box, panel holder or camera mount accessory with a standard bush that fits the 18 by 18cm platform and stays under 8kg. It works the other way too, a Mabef pochade box will sit on a normal camera tripod.

Why buy this instead of a camera tripod?

Two reasons, and if neither applies to you then a camera tripod is a perfectly sensible answer. The first is the platform: 18 by 18cm of flat beech under the box, rather than a small camera head that a pochade box overhangs. The second is that it is wood, not aluminium, which means it does not get cold in your hands in winter or too hot to touch in an Australian summer, and it damps vibration rather than ringing with it.

How tall does it go?

Seventy centimetres up to 116cm, so you can work seated or standing. At 1.3kg with a leather strap to hold the legs closed, it is genuinely a carry it anywhere tripod.

Is there anything I should know before buying?

One honest note. There is no quick release plate, so mounting the box means lining up the bush with the screw and turning, which takes a moment and is fiddlier than a camera tripod with a clip. If you set up once and paint, you will never think about it. If you move spots constantly, it is worth knowing.

Does it need assembling?

Once. Three legs bolt into the central hexagonal joint and the hardware is supplied. After that it folds and unfolds as one piece.
Australian stockist. Shipped from our own Australian warehouses, not drop shipped from overseas. Packed properly and shipped quickly, because nobody enjoys chasing a parcel.

(MA30)

SKU MA30
Barcode # 8017924001428
Brand Mabef
Shipping Weight 2.0000kg
Shipping Width 0.145m
Shipping Height 0.105m
Shipping Length 0.880m
